Solpod Blocks
If you can install 100 kW, you can install 1 MW

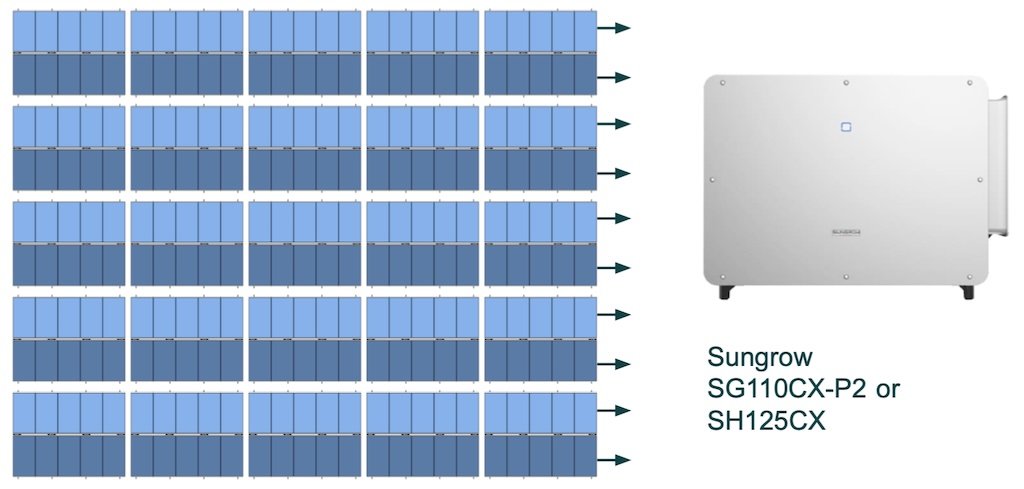

A ‘block’ of 25 Solpods fits neatly with a Sungrow SG110CX-P2 inverter, with 10 strings of 25 panels into 10 MPPTs.

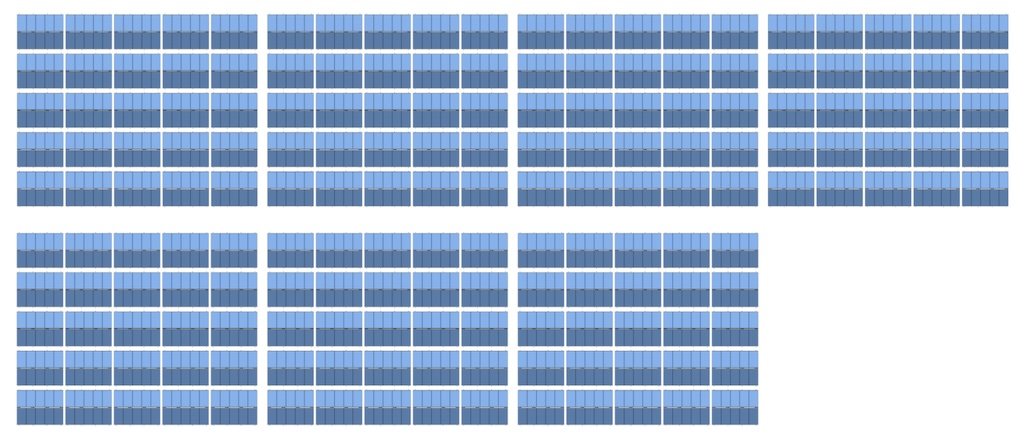

Add more blocks to install larger systems
Larger systems, including up to 1 MW with STCs, are installed by replicating the blocks.

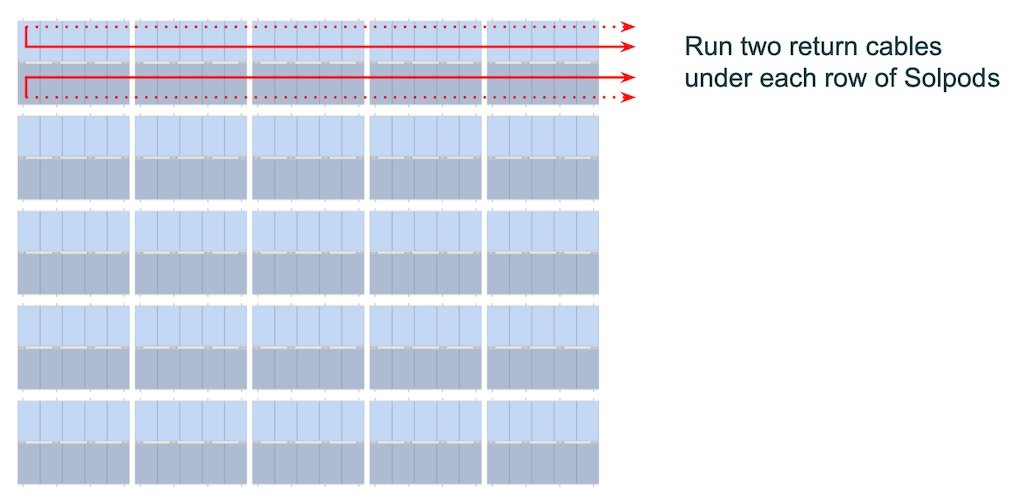

Simple DC cabling
Each row of five Solpods has two DC return cables.
Anchoring to the ground
Solpods can be anchored using:
- rammed posts (four posts, each 1 m deep for Wind Region A)
- ballast blocks (four blocks, each 120 kg for Wind Region A)
- ground anchors (four anchors, each with 3 pins)

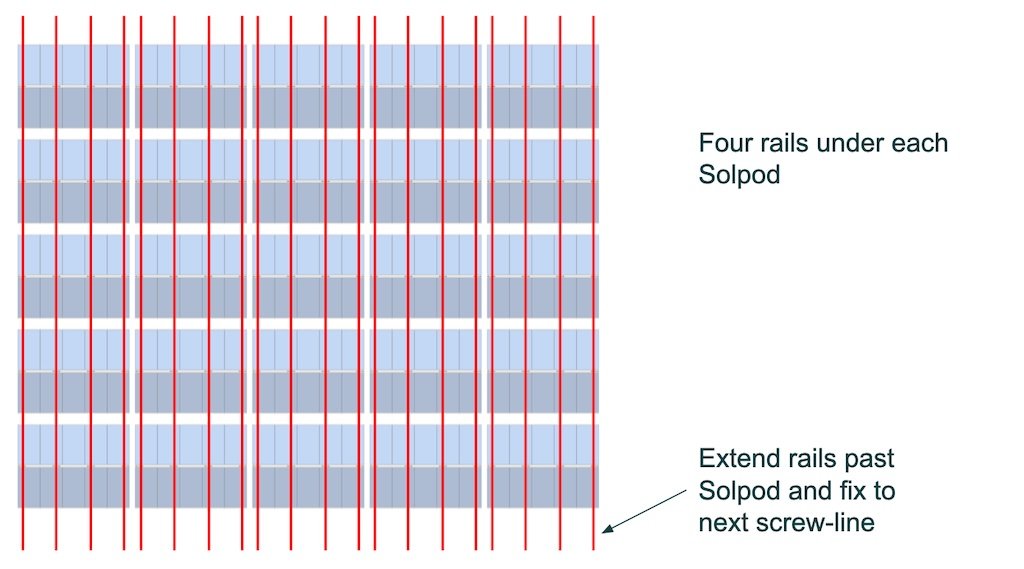

Fixing to a roof
Each column of Solpods is fixed to four rails (or channel).

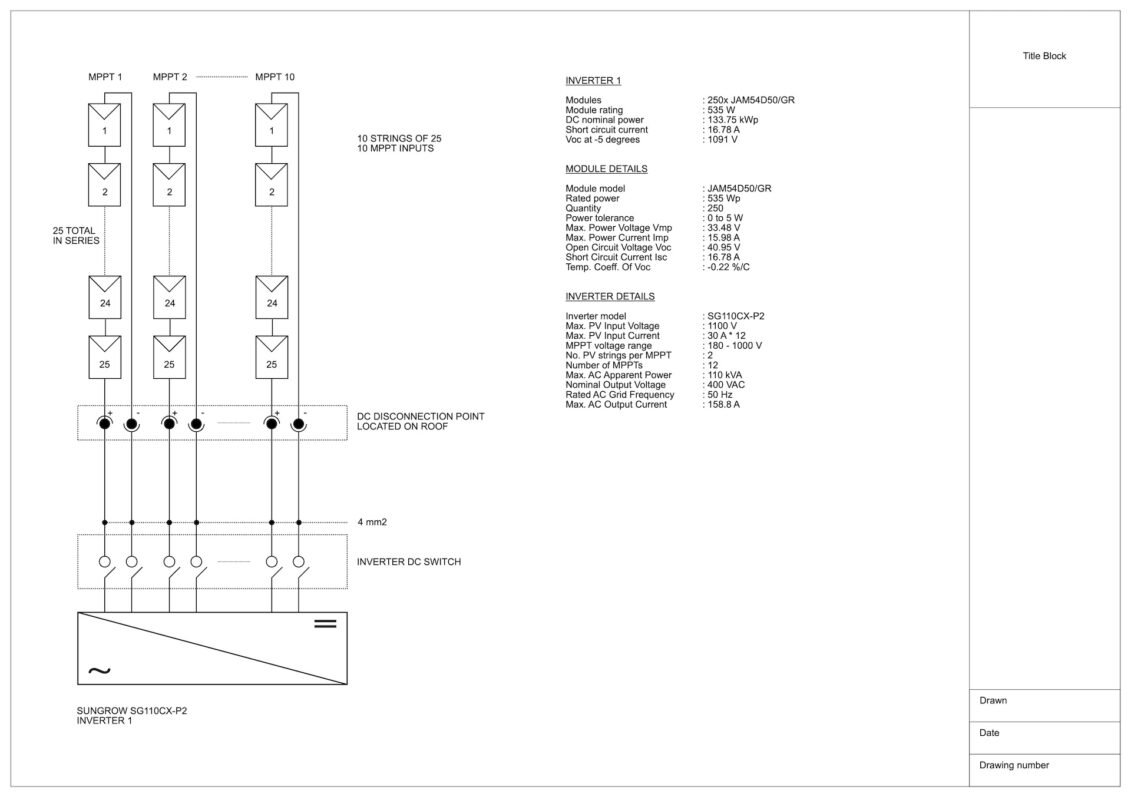

Single Line Diagram
Download our template to help you on your way.
Documentation
Visit our documentation page to view brochures and manuals.
